Process A Terminal Payment (Card Reader)

This is the standard way to take an in-person card payment: you send the amount to the card reader, and the customer taps, inserts, or swipes their card.

Step 1 — Open the order

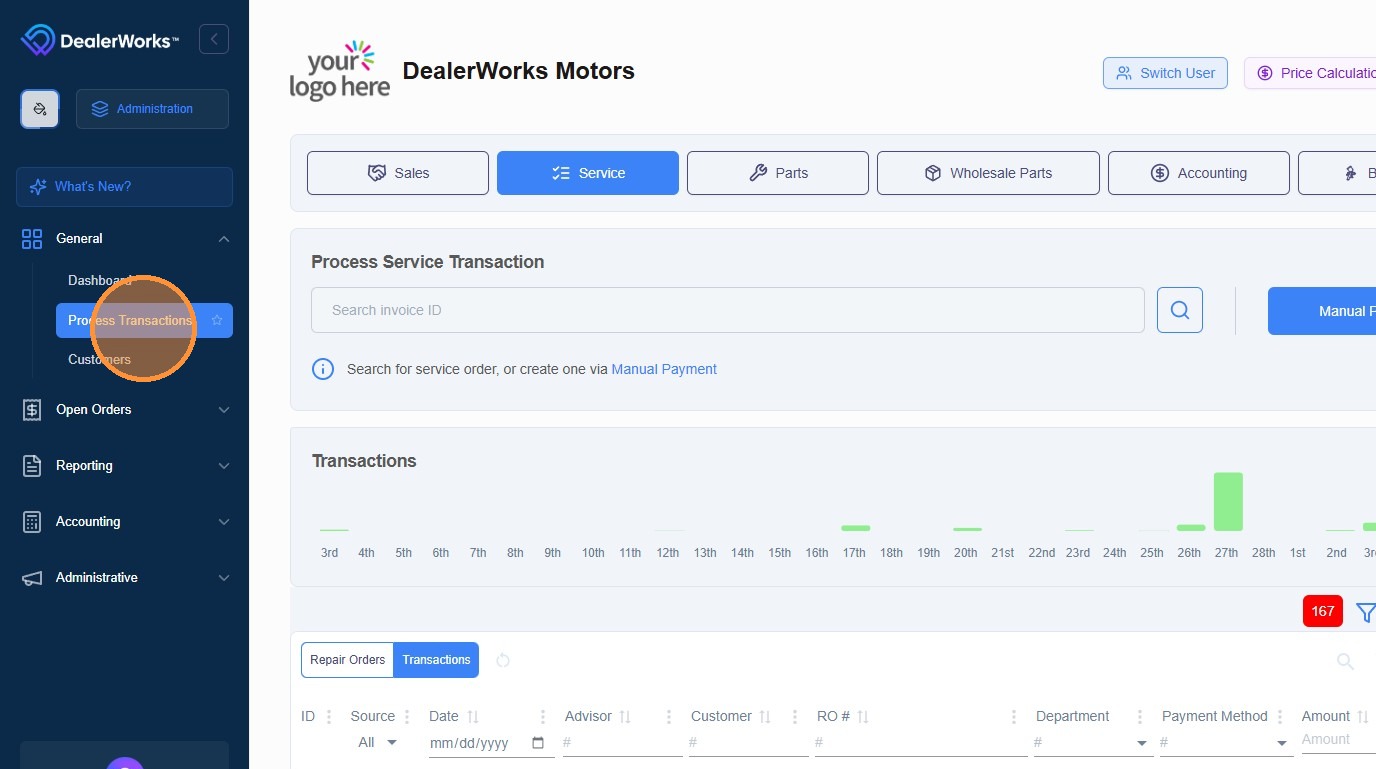

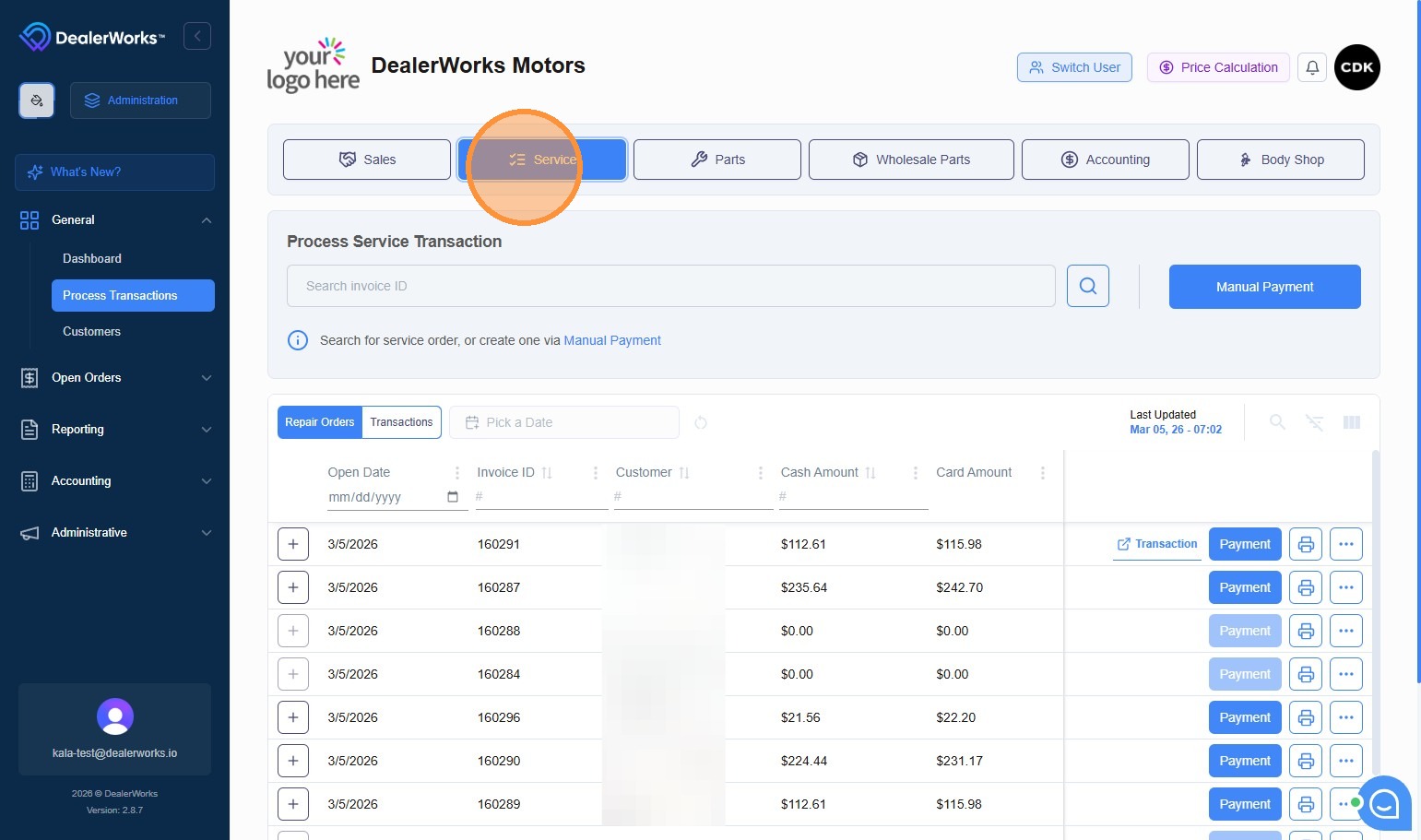

Go to GeneralProcess Transactions and click the tab for the department you are taking payment for — Sales, Service, Parts, or Accounting.

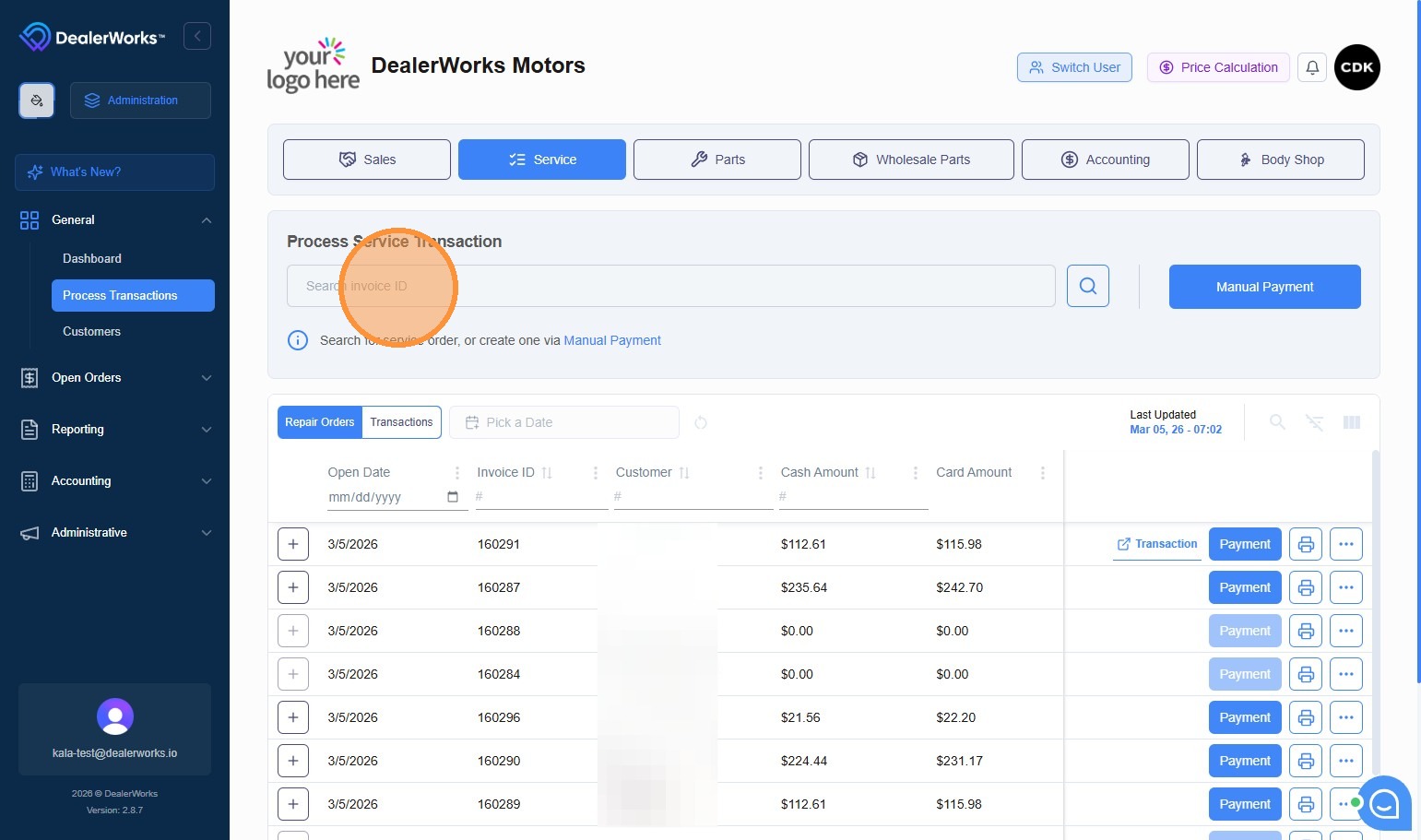

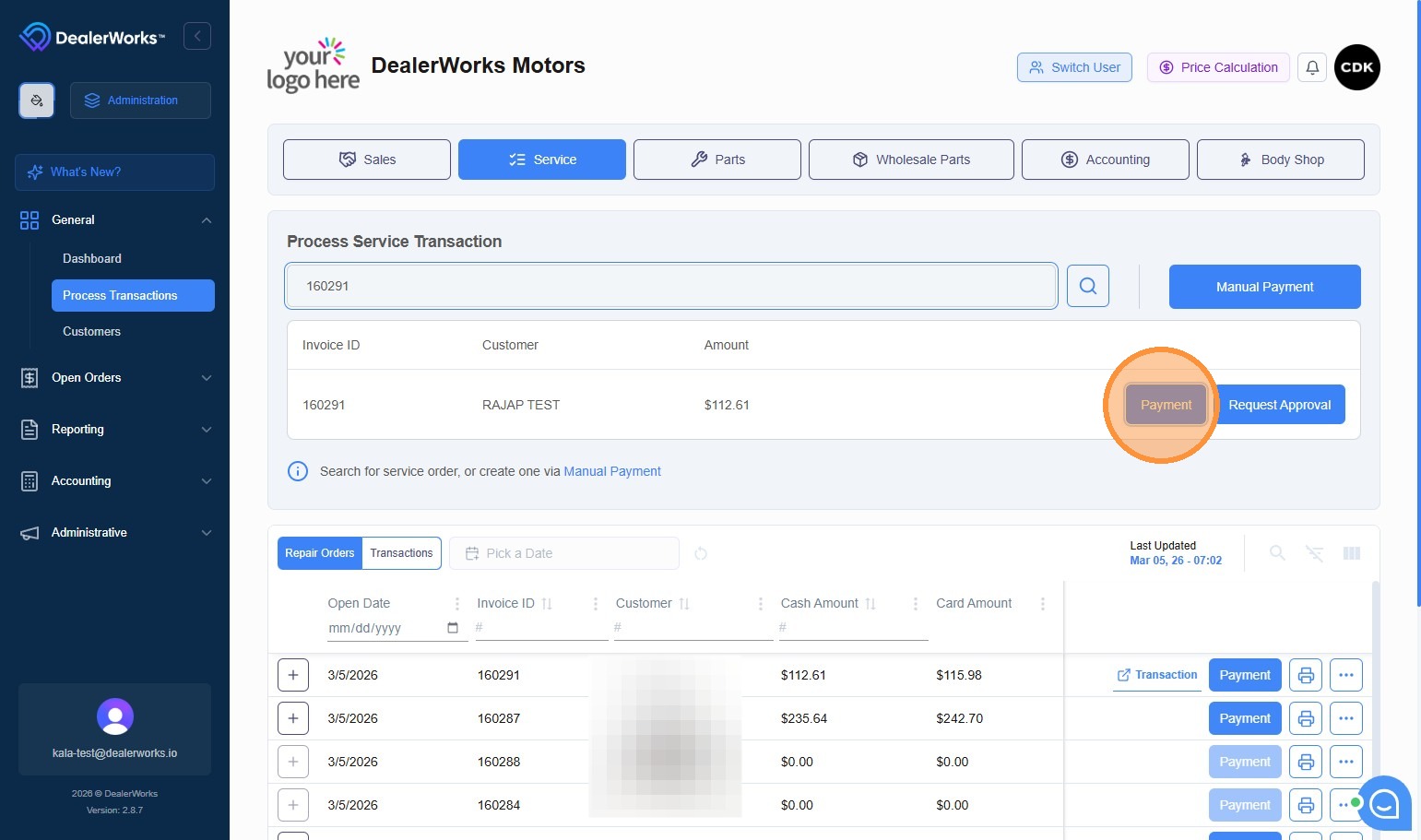

  • If your orders come from your DMS: search for the order, check the balance, and open the payment window.
  • If you enter payments yourself: fill in the customer and the amount, then click Receive Payment.

Can't find the order? Check you are on the right department tab first — see Repair order not showing up.

Step 2 — Send the amount to the terminal

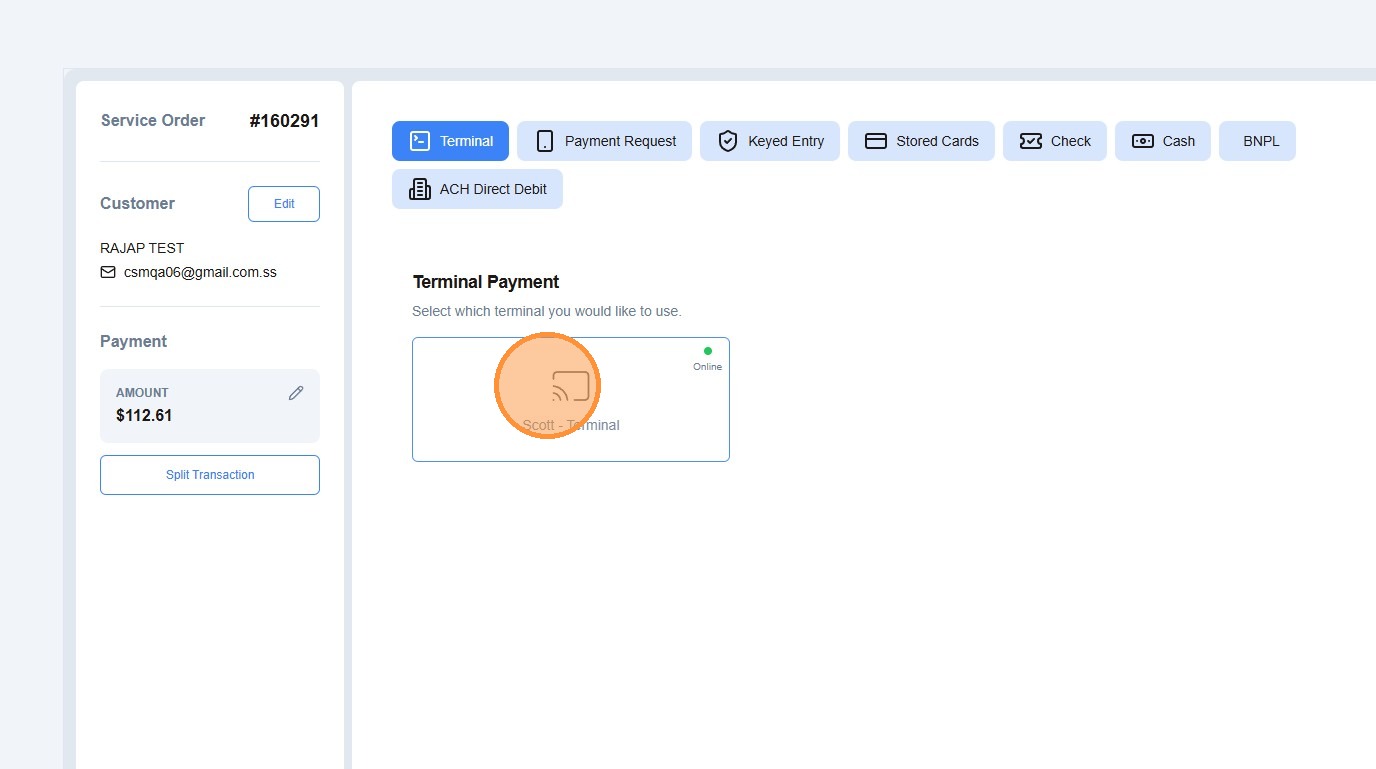

  1. 1In the payment window, select the Terminal tab.

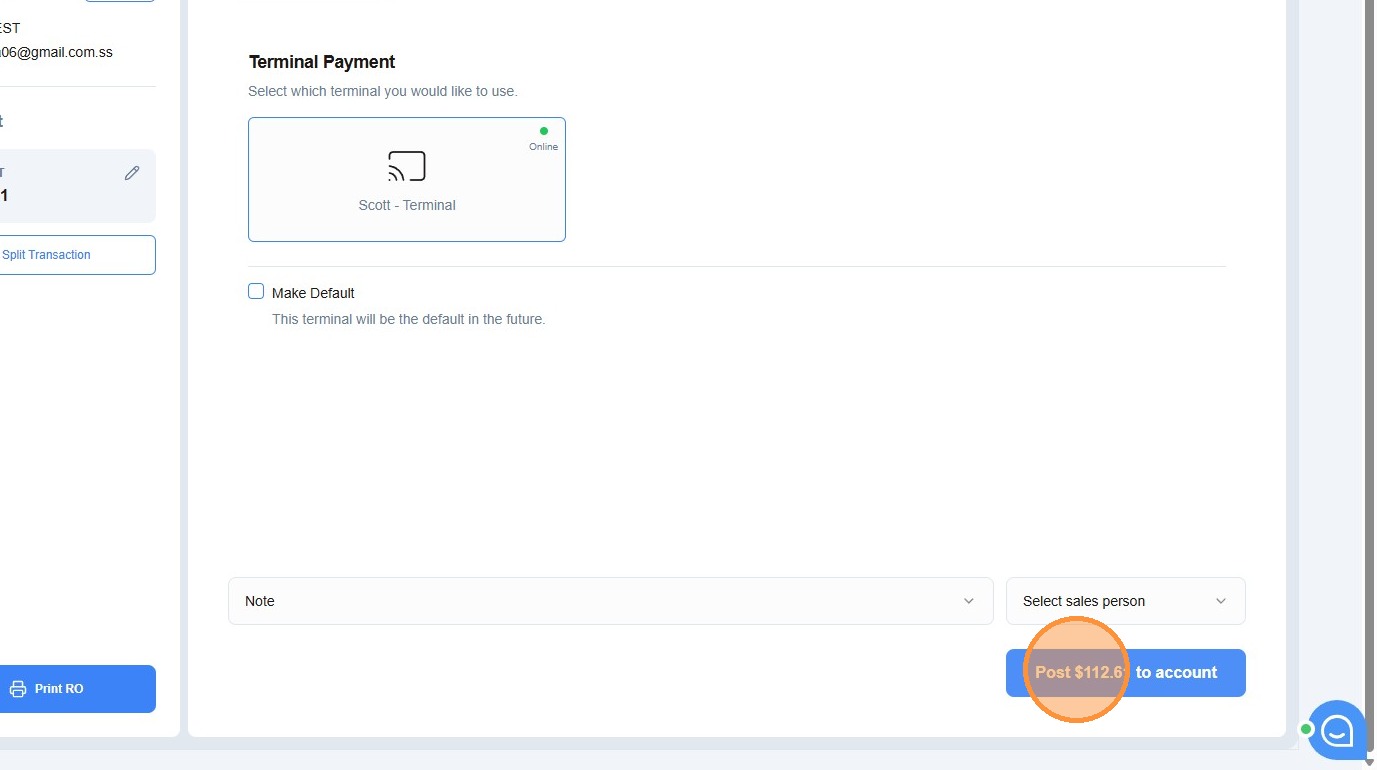

  2. 2Under Terminal Payment, choose the terminal you are using, then click Process with the amount shown on it.

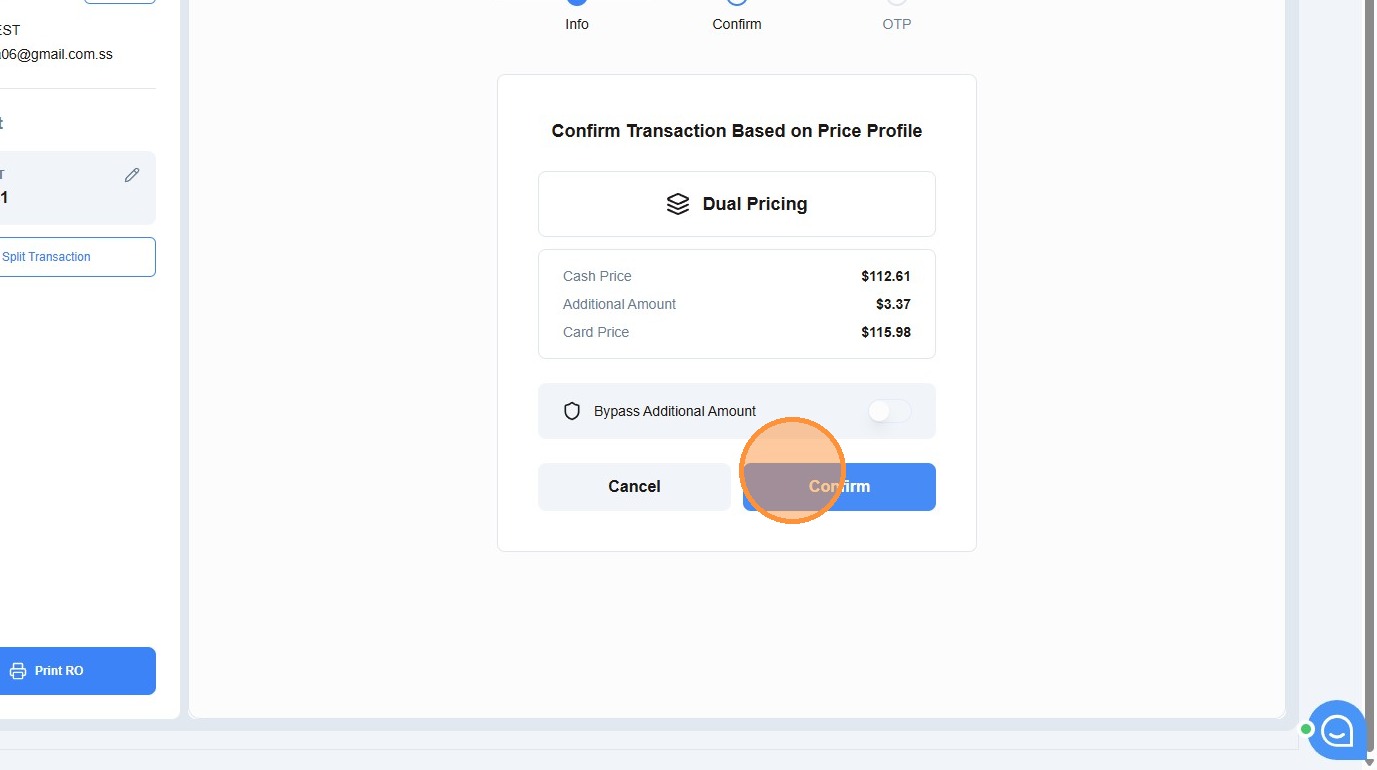

  3. 3Check the confirmation screen. It shows the amount, any additional amount, and the final total the customer will pay.
  4. 4Click Confirm. DealerWorks sends the amount to the reader and shows Processing on Terminal.

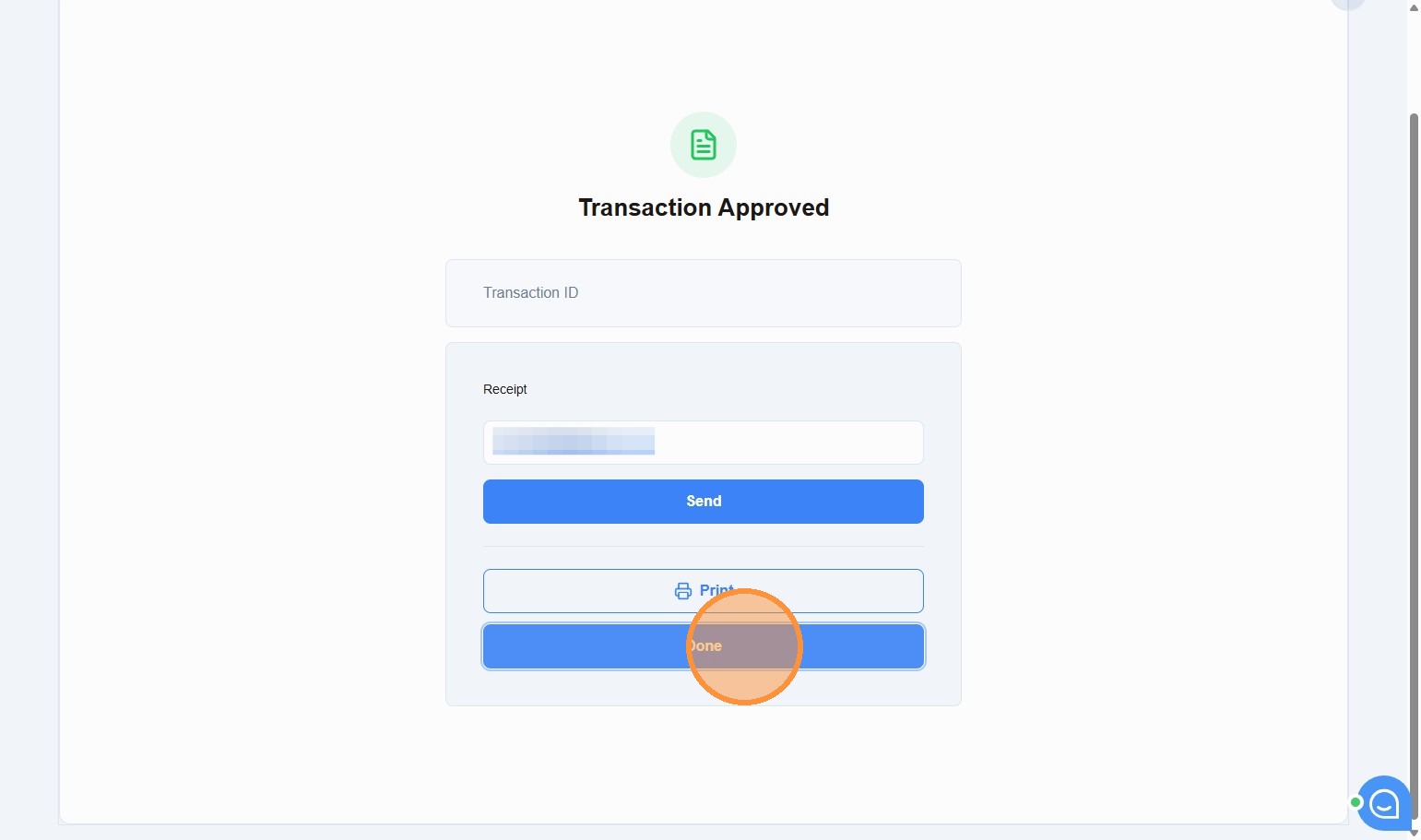

  5. 5Ask the customer to tap, insert, or swipe their card. The screen updates on its own when the payment finishes.

Note: If your dealership allows it, you can switch off the additional amount before you confirm — see How to Bypass Additional Amount.

If it does not go through

What you see What to do
The terminal you want is not in the list The terminal is probably offline. See Terminal Showing Offline?
Nothing appears on the card reader The reader may be asleep or frozen. See Terminal Is Off or Frozen? Restart It
The card is declined The reason is shown on the transaction. See Payment Decline Reason Reference
The payment turns yellow / says Challenged It is not approved yet. See Understanding Transaction States

Do not retry a payment you are unsure about

If you are not certain whether a payment went through, check the transaction list before trying again — retrying can charge the customer twice. If it is unclear, contact DealerWorks Support.
